• Материал: 304, 304L, 316, 316L, 904L, 2205, 2507, hastelloy, monel, inconel etc.
• Micron: 1-200um
• Layers: 2-10 layers
• Size: 500x1000mm, 600x1000mm, 600x1200mm, 1000x1000mm, 1200x1200mm etc.


  Model	Filter rating	Structure	Thickness	Вес	Porosity

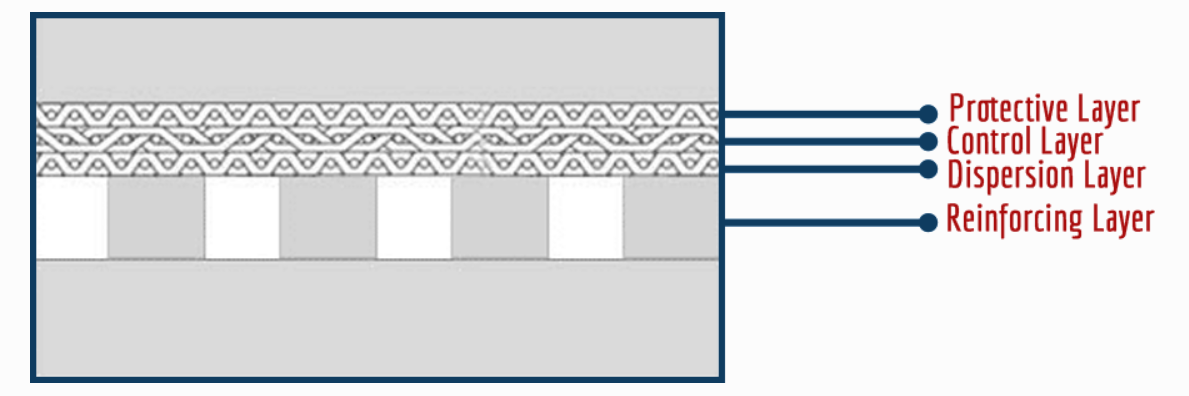

  AGS-1.5T	2-100um	60 mesh+filter layer+30 mesh+∮1.5x3px1.0T	1.5mm	8.2kg/m2	30%
  AGS-2.0T	2-200um	30 mesh+filter layer+30 mesh+∮4x5px1.0T	2.0mm	6.7kg/m2	57%
  AGS-2.5T	2-200um	30 mesh+filter layer+30 mesh+∮5x7px1.5T	2.5mm	9.8kg/m2	50%
  AGS-3.0T	2-200um	30 mesh+filter layer+60 mesh+∮6x8px2.0T	3.0mm	11.8kg/m2	50%
  AGS-4.0T	2-200um	20 mesh+filter layer+20 mesh+10 mesh+∮8x10px2.5T	4.0mm	14.2kg/m2	55%
  AGS-4.3T	5-200um	20 mesh+filter layer+20 mesh+10 mesh+∮10x13px3.0T	4.3mm	16.9kg/m2	50%

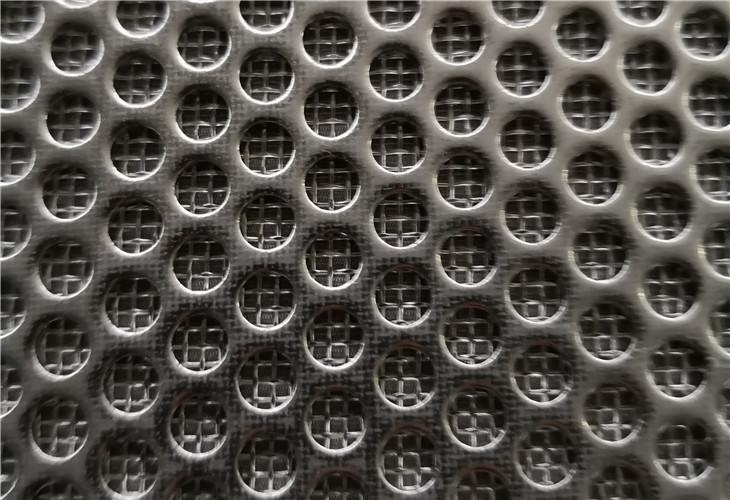

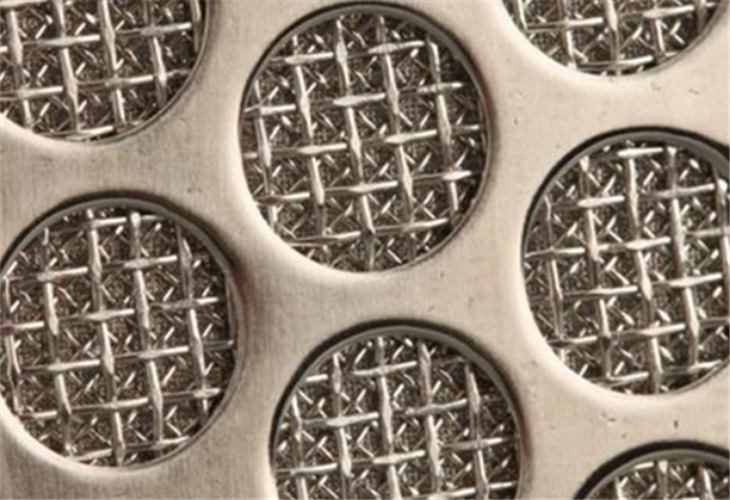

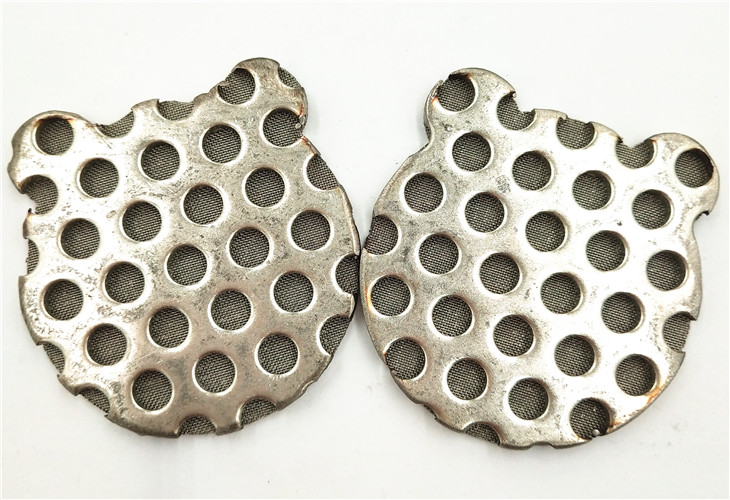

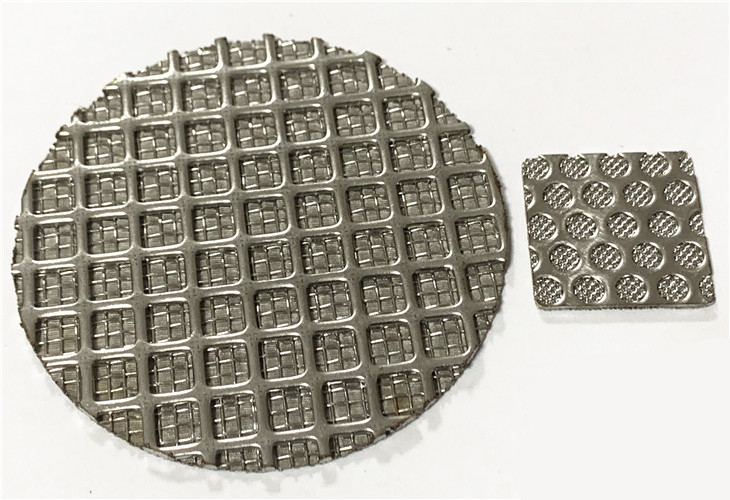

Perforated metal sintered mesh are resistant corrosion and high temperature, with wide filter rating ranges, having high mechanical strength and the ability to maintain a steady filter rating under high pressure. Perforated sintered wire mesh laminate is also easy to clean with a variety of filter cleaning techniques, and easy to fabricate, weld, punch, shear or made to filter cartridges and tube.

• Gas & liquid filtration applications.
• Separation and recycling of solid particles.
• Decentralized quenching in extensive heat conditions.
• Airflow distribution.
• Heat exchange.
• Noise attenuation.
• Fire protection.
• аэрокосмическая.
• нефтехимический
• Фармацевтическая industries.
