1、 General Technical Parameters (SV2 Series)
Nominal diameter (DN): DN25 to DN600

Nominal pressure (PN): usually PN ≤ 2.5MPa, some products can reach 1.6MPa to 6.4MPa or 0.25-10MPa.

Shell material: usually cast steel or stainless steel, some options include PP and F46.

Filter material: stainless steel

Connection method: flange or clamp type

Applicable temperature: Wide range, commonly ranging from -20 ° C to+450 ° C, with some reaching+550 ° C.

Applicable media: water, oil, steam, gas, and various liquids

Manufacturing standards: National Standard (GB), German Standard (DIN), American Standard (API/ANSI), etc

2、SV2-DN250 external dimensions list as below’
D (outer diameter): 329 mm
D1 (flange outer diameter): 238 mm
D2 (inner diameter of filter): 184 mm
L (total length): 255 mm
T (wall thickness): 2mm
Please note that there may be slight differences in dimensions between different manufacturers or pressure levels For more details, please contact your email sandy@aegismetals.net

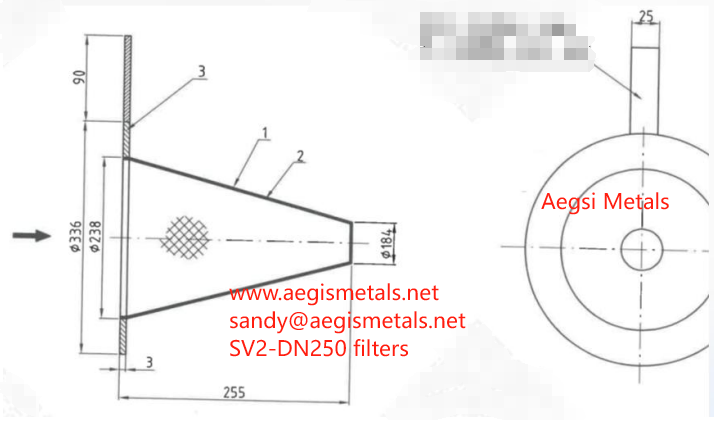

3、SV2-DN250 filters drawing:

• Easy to disassemble: The design considers the convenience of temporary use, making disassembly and installation very convenient.
• Easy to maintain: The filter screen (filter cartridge) is detachable. When cleaning is needed, simply remove it, clean it thoroughly, and reinstall it, making maintenance simple.
• Compact structure: The product has the characteristics of small volume and light weight

(1) Core function: Protect critical equipment
Its main responsibility is “pre protection” by intercepting impurities during the initial operation of the system to ensure the safety of downstream equipment. These protected devices mainly include:
Power equipment: such as compressors, pumps, etc.
Precision instruments and control equipment: such as various measuring instruments, measuring and control devices.
Pipeline valves and steam traps: such as valves, steam traps, etc.

(2) Applicable media and industries
The SV2-DN250 filter has a wide range of applications and can handle various media, serving many industrial fields.
Common media: widely used in steam, air, water, oil and other system pipelines.
Main industries:
Химическая and нефтехимический Industry: Processing weakly corrosive materials such as water, ammonia, oil products, hydrocarbons, etc.
Химическая production: Processing corrosive materials such as caustic soda, sulfuric acid, carbonic acid, and acetic acid.
Refrigeration industry: Processing low-temperature materials such as liquid methane, liquid ammonia, and liquid oxygen.
Light Industry Food and Фармацевтическая: Processing materials with hygiene requirements such as beer, beverages, dairy products, etc.
