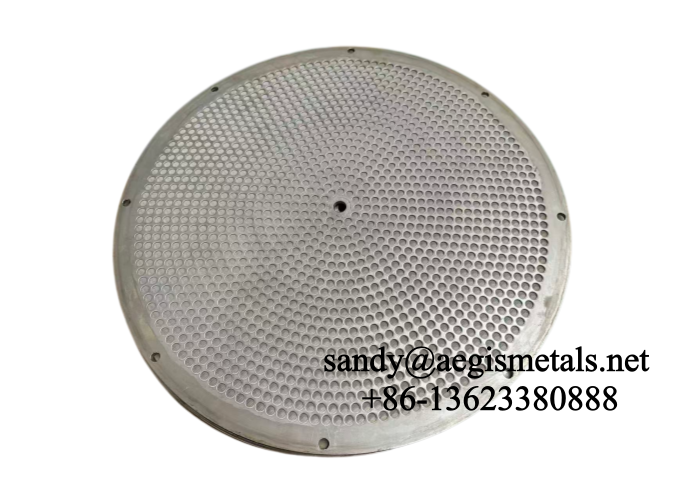

Dimensions: 600 mm (diameter) x 10 mm (thickness).

Filtration Rating: Absolute 40 μm (Beta ratio ≥ 200 per ISO 16889).

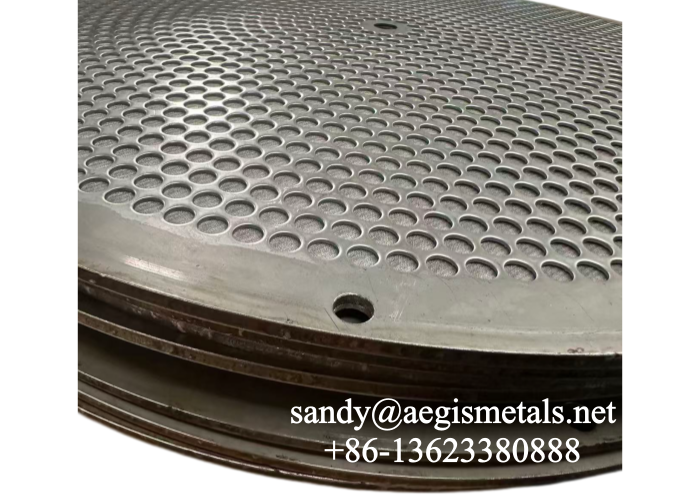

Structure Options: 5-layer sintered wire mesh laminate + 2 Layers metal perforated sheet. and the welding seam should be smooth and flat without any missed welding.

Mandatory Process Requirements:

• Sintering atmosphere: Vacuum or pure H₂ (to prevent oxidation).

• Edge sealing: Laser welding on both longitudinal sides to eliminate bypass leakage.

• Post-treatment: Roller leveling to ensure flatness ≤ 1.0 mm over 600 mm length (Camber ≤ 0.5mm/m).

Supply Scope: Filter element only, with Mill Test Certificate (MTC) reporting actual bubble-point test result (per ASTM F316) to verify 40μm rating.

Supporting Data Required: Please provide pressure drop vs. flow curve for this specific size.
