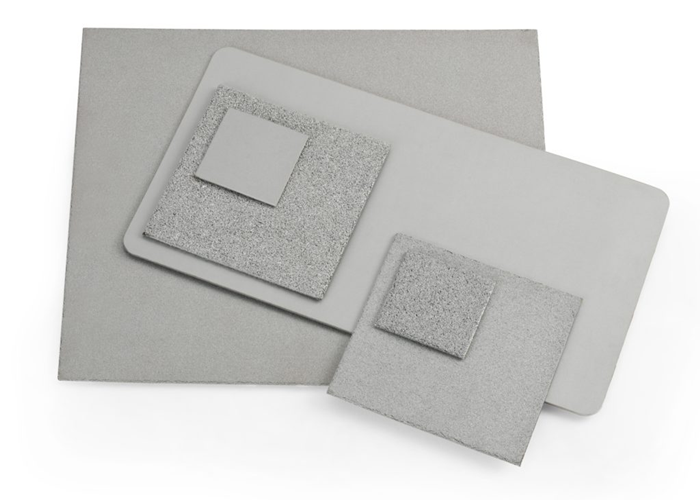

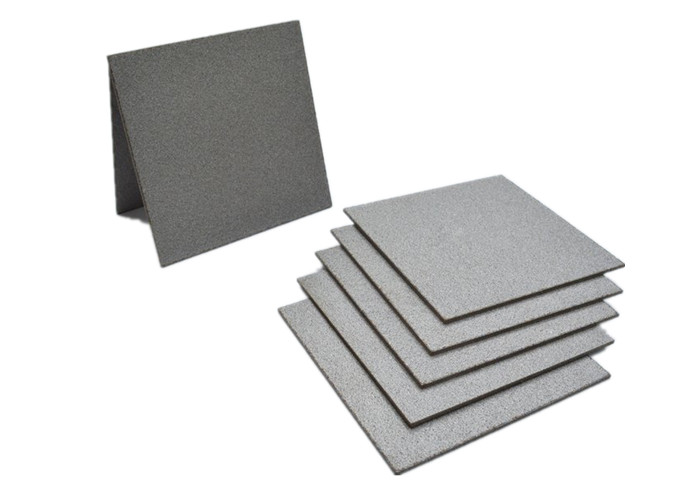

Спеченный порошок Porous Sheet-Aegis

Подробные спецификации

Материал: stainless steel grade(304/316/316L), Titanium(Ta1 Ta2), Nickel, Copper Bronze, Inconel, Monel. Hastelloy and other special materials.

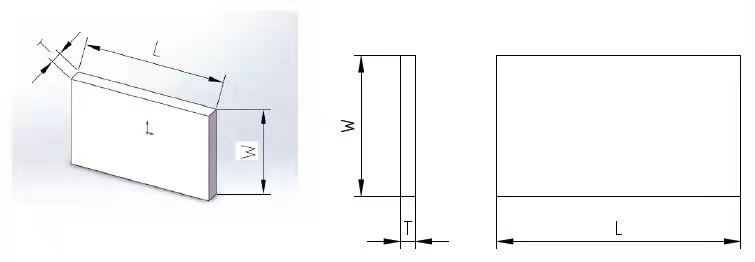

Sheet Size: Length side max can be up 600mm.
Thickness: 1.5mm 2mm 2.5mm 10mm, max 20mm.
Micron size: 0.1um to 100um
Porosity: 28%-50%
Other special sizes can be made.

Особенности

High temperature resistance, normal use below 500℃。
High mechanical strength, good plasticity, and can be machined.
Corrosion resistance, oxidation resistance, can be used in nitric acid, sulfuric acid, dilute hydrochloric acid (5%), acetic acid, liquid hydrogen, liquid nitrogen environment.
The molding process is good, and it can be processed in one time according to the customer’s drawings.
High filtration precision and good purification effect.
The pores are uniform, the internal structure is stable, and no particles fall off.
Good air permeability, easy to backflush and clean, and can be regenerated and used repeatedly online.
Wear-resistant and impact-resistant, with good mechanical properties.

Применение

Impurity removal filtration in the production process of chemical raw materials, decarbonization filtration and fine filtration of materials.
Security filtration of ultrafiltration, RO and EDI systems in water treatment.
Clarification and filtration of finished products in the food and beverage industry.
Filtration and recovery of precious metal catalysts in petrochemical industry.
Precision filtration of liquid raw materials, products and pharmaceutical intermediates in chemical industry.
Security filtration of reverse osmosis in fields such as oil field reinjection water filtration.
Degreasing and purification of steam and compressed air in gas purification.
Media purification and flow restriction of pneumatic components, lubricating oil, fuel oil and hydraulic pneumatic system.
