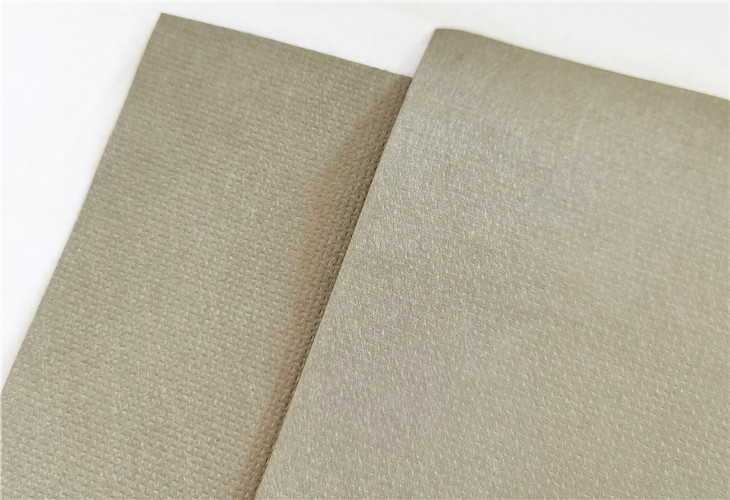

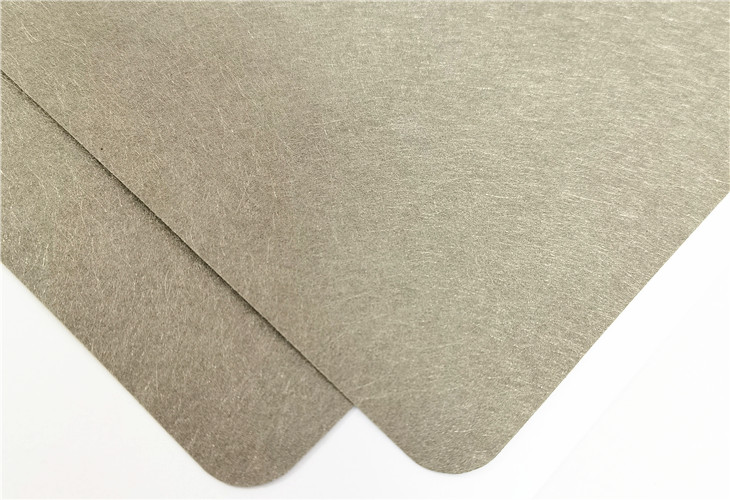

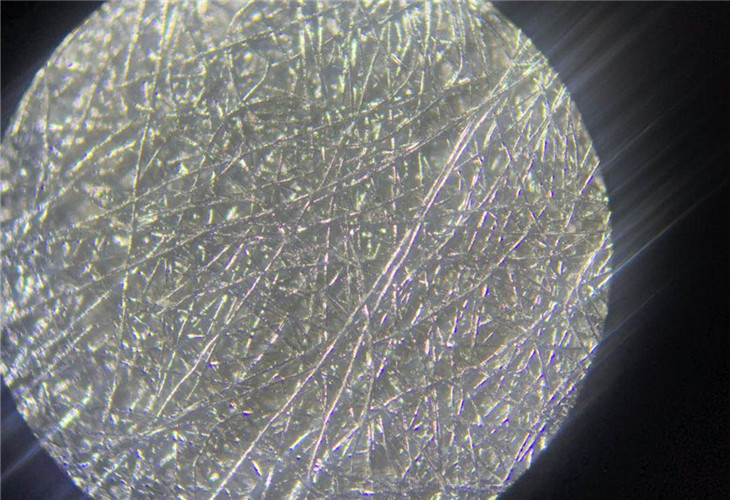

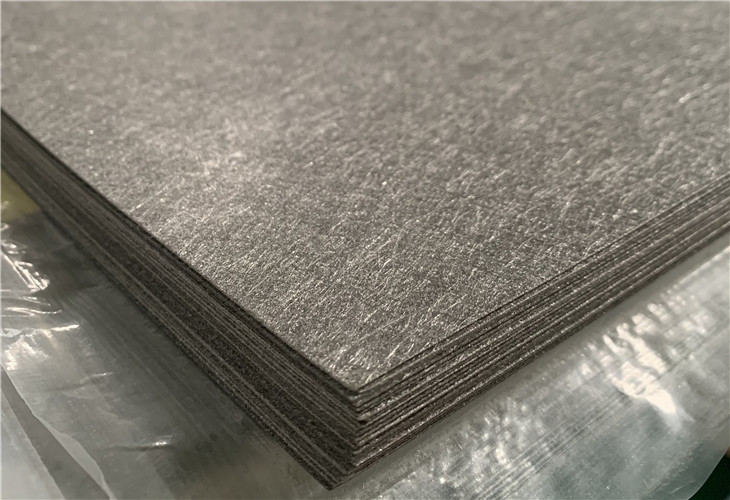

Nickel Fiber Felt-Aegis

Подробные спецификации

Материал: N4 N6 N8 Ni200 Ni201
Thickness: 0.25mm, 0.3mm, 0.4mm, 0.5mm, 0.6mm, 0.8mm ,1.0mm, 1.2mm etc.
Micron: 3-100um
Size: 100x100mm, 200x200mm, 300x300mm, 400x400mm, other size can be customized.
Porosity: 50%-90%
Stock Size of Nickel Felts in Aegis Company[other sizes can be custom made]:

Thickness	Porosity	Sheet size
0.25mm	50% 60% 55% 65% 70% 75% 80% 85% Porosity	300300mm、320650mm、310310mm、310330mm、320320mm、230260mm、260510mm、500500mm、210210mm、200300mm、200500mm、330485mm、485530mm、300300mm、650X650mm、1000x1000mm
0.3mm
0.4mm
0.5mm
0.6mm
0.8mm
1.0mm
1.2mm-2mm thickness	50-80%	needs new produced

Особенности

Comparison of the properties between Ni fiber felt and nickel foam:

Property	Ni fiber felt	Nickel Foam
Thickness /mm	0.25-2.0	0.5-3.0
Porosity /%	40-90%	50-130PPI
Unit weight /g m²	300-1000	350-1000
Pore size /u m	3-100	50-5000
Specific surface area /cm²cm³	(0.5-2.0)X 10⁵	50
Tensile strength /MPa	5-8	0.1-1.5
Elongation /%	≥8	≥5-7

В conclusion
1) The thickness, pore size, unit weight, porosity and other performance indicators of nickel fiber felt can be comparable to nickel foam.
2) Nickel fiber felt has the characteristics of larger specific surface area, higher tensile strength and better flexibility than foamed nickel, and is suitable for making large-capacity, high-current nickel-metal hydride batteries.

Применение

Filter material
Photocatalyst series air filter screen
Химическая catalyst and support materials
Battery electrode material
Heat exchange and adsorption materials
ALK electrolytic cell
AEM electrolytic cell
Nickel hydrogen battery: Nickel felt, as the electrode material of the battery, provides a large specific surface area for the charging and discharging reactions of the battery, which helps to improve the capacity and charging and discharging efficiency of the battery, and prolong its service life.
