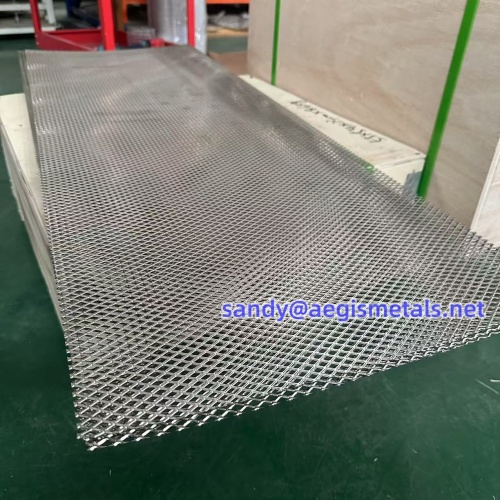

• Материал: TA1 TA2 GR1 GR2 GR3 GR4 GR5 Titanium Metal Plate, other material such as nickel, stainless steel, copper….

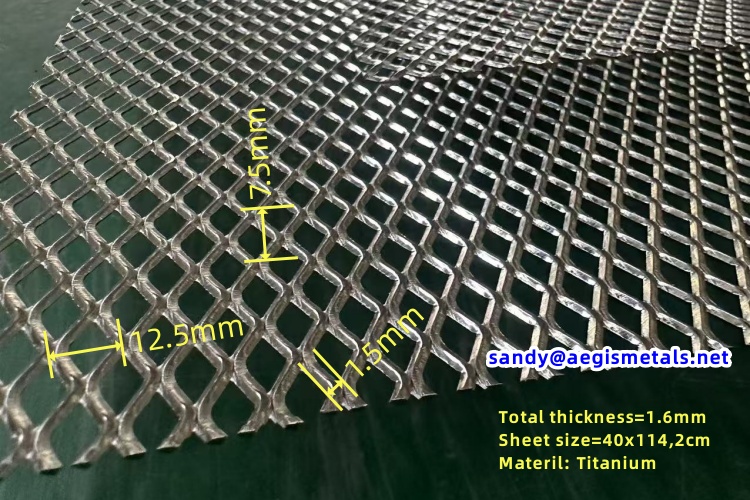

• LWD=12.5mm
• SWD=7.5mm
• Thread thickness: 1mm
• Thread width: 1.5mm
• Diamond Ti expanded metal mesh thickness=1.6mm
• With slight flattening treatment
• Sheet Width: 400mm
• Sheet Length: 120mm
• Quantity: 100 pcs
• If you wanna other sizes, you can contact us directly through email: sandy@aegismetals.net  or  phone +86-15003386113

1. Titanium expanded metal mesh raw material is Grade 1 99.9% pure titanium, which with high corrositance.
2. 7.5×12.5mm LWDXSWD relatively big diamond hole size, can increase the touching surface of the catalyst.
3. Sizes can be produced with more options according to your request.

Due to the non-corrosive characteristics of titanium, titanium expanded metal sheet is usually used for filters, ion-exchange membrane electrodes, anodes, battery electrode mesh, oxygen cathode ion membranes, electrolytic cell titanium anodes, electroplating anode mesh, etc.
