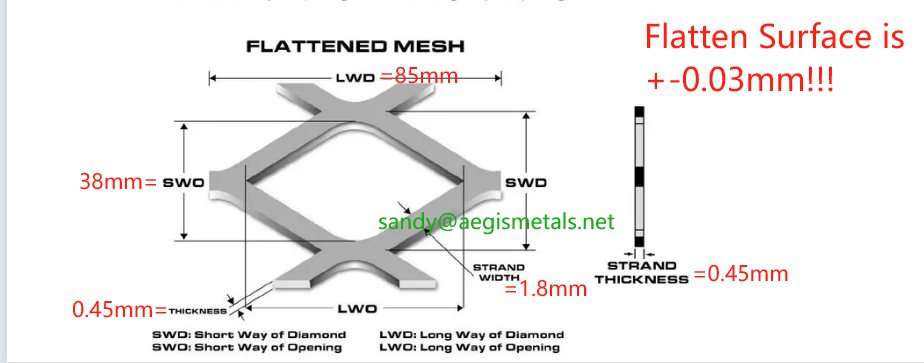

LWD=85mm

SWD=38mm

Thread width =1.8mm

Thread thickness=0.45mm

Titanium base plate thickness =0.45mm

Utra Fine Flatten Treatment with tolorance+-0.03mm

Electric resistance(at 30 degree)=0.061Ω

Per Square Meter Вес=0.183kg/m2

Width=1200mm

Length: from 10m to 100m

Surface treatment: MMO coating

(1) High Corrosion Resistance for the Titanium Ta1 Grade 1 Материал.

(2) Light weight: compare with other materials. Titanium material’s density is only 4.5g/cm3, while stainless steel 7.93g/cm3, Copper 8.92g/cm3.

(3) Sizes of more options to choose.such as 38x85mm, 20x40mm, 12.5x25mm… and ultra fine micron hole size 1x2mm 2x4mm 0.5x1mm 0.4×0,8mm

(1) Filtration and Separation: В industries such as chemical, petroleum, and pharmaceutical, titanium steel mesh is commonly used to make filters and separators.
(2) Catalyst carrier: Titanium steel mesh has a large specific surface area and good chemical stability, and can be used as a catalyst carrier. Improving the activity and selectivity of catalysts is beneficial for reaction efficiency.
(3) Electrolytic cell electrode: Titanium steel mesh can be used as the electrode material for electrolytic cells. Capable of withstanding the high current density and corrosive electrolyte during the electrolysis process, improving electrolysis efficiency and extending electrode service life.
(4) Aircraft structural components: Titanium steel mesh is used in aircraft structural components such as wings, fuselage frames, etc. due to its high strength, low density, and good fatigue resistance.
(5) Engine components: В aviation engines, titanium steel mesh can be used to manufacture some high-temperature and corrosion-resistant components, such as compressor blades, combustion chamber components, etc.
