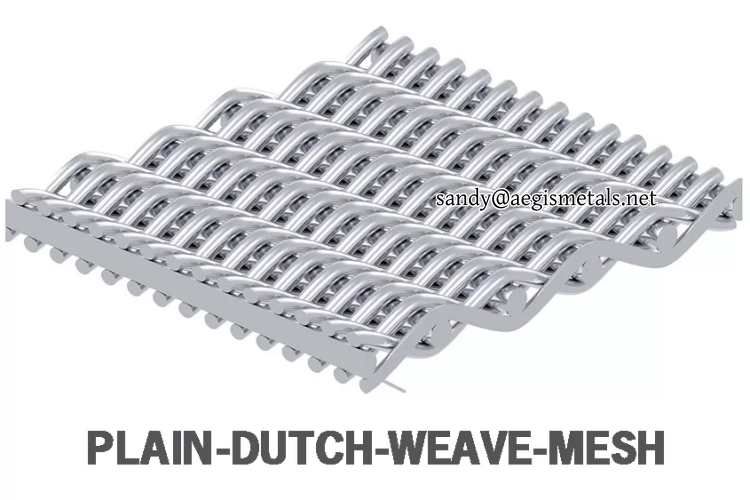

Plain Dutch Weave (Holland Weave) Тип: The standard form, offering good strength and fine filtration.

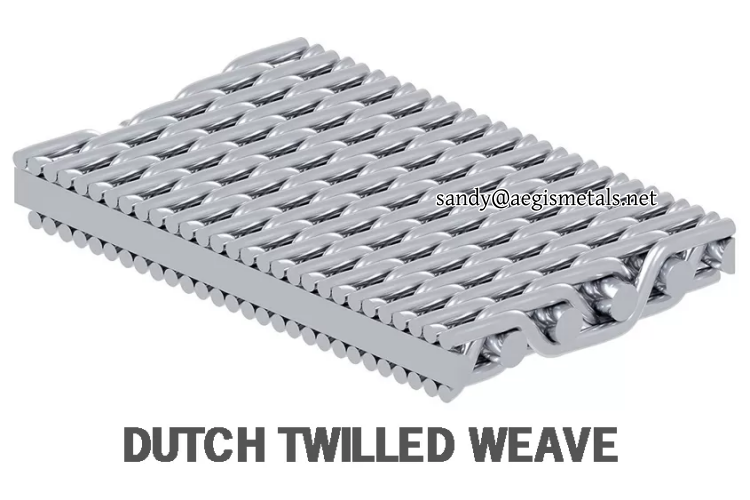

Twill Dutch Weave Тип: The weft wires pass over and under two warp wires. This allows for even finer filtration and higher strength for a given mesh count, but at a higher cost.

Материал: SUS 304 304L 201 316 316L 904L

Roll Width: 1m-2m

Roll length: 30M/roll 15m/roll

Dutch weave stainless steel filter mesh with more advantages:

(1) High filtration accuracy: Due to its unique woven structure, the mesh is uniform and tiny, effectively intercepting small particles and achieving high-precision filtration.
(2) High flow rate and low pressure loss: While ensuring high-precision filtration, it can provide a high flow rate with minimal pressure loss, thereby enhancing filtration efficiency.
(3) High mechanical strength: The combination of thick and thin warp and weft threads, coupled with a tight weaving method, endows the net with high tensile strength and wear resistance, enabling it to withstand significant mechanical loads.

Filter Elements: The core material for sintered mesh filter elements, wedge wire screens, and basket strainers in the oil & gas, petrochemical, and power generation industries.

Slurry and Extrusion: Used as screens in plastic extrusion, polymer production, and slurry processing to remove contaminants under high pressure.

High-Pressure Liquid Filtration: В hydraulic systems (for oil and fuel), cooling water systems, and process chemicals.

Particle Size Classification: Used for wet or dry sieving of fine powders where high strength is needed.

Debris Filter in Nuclear Industry: Used for its reliability and strength in critical safety systems.
